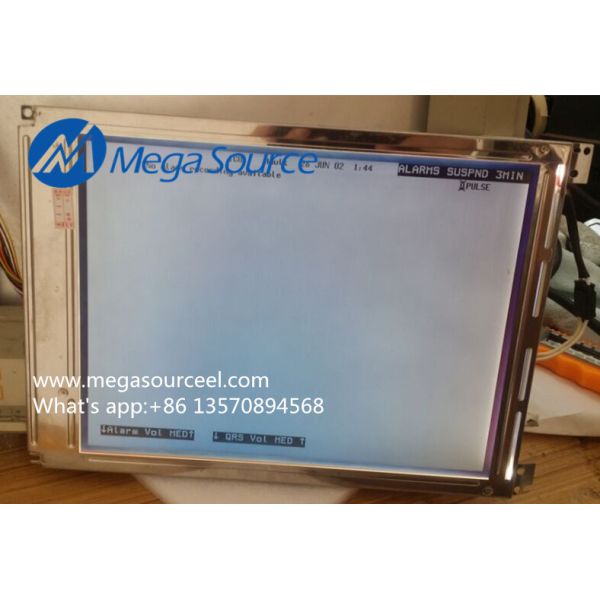

OPTREX 8.4inch T-55786GD084J-LW-AAN LCD Panel

    Buy cheap OPTREX 8.4inch T-55786GD084J-LW-AAN LCD Panel from wholesalers

    Buy cheap OPTREX 8.4inch T-55786GD084J-LW-AAN LCD Panel from wholesalers
    • Buy cheap OPTREX 8.4inch T-55786GD084J-LW-AAN LCD Panel from wholesalers

    OPTREX 8.4inch T-55786GD084J-LW-AAN LCD Panel

    Ask Lasest Price
    Brand Name : OPTREX
    Certification : RoHS Compliant
    Model Number : T-55786GD084J-LW-AAN
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    OPTREX 8.4inch T-55786GD084J-LW-AAN LCD Panel

    OPTREX 8.4inch T-55786GD084J-LW-AAN LCD Panel

    Specification for T-55786GD084J-LW-AAN:

    T-55786GD084J-LW-AAN Basic Information

    Panel Model

    T-55786GD084J-LW-AAN

    Panel Brand

    OPTREX

    Descrition

    a-Si TFT-LCD ,8.4 inch, 800×600

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -30 ~ 80 °C

    Storage Temperature

    -30 ~ 80 °C

    T-55786GD084J-LW-AAN Mechanical Features

    Dot Resolution

    800(RGB)×600 (SVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    119 PPI

    Aspect Ratio

    4:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.071×0.213 mm (H×V)

    Pixel Pitch

    0.213×0.213 mm (H×V)

    Weight

    390g (Max.)

    Surface

    Antiglare

    Active Area

    170.4×127.8 mm (H×V)

    Outline Dimension

    199.5×149 mm (H×V)

    Outline Depth

    11.5 mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    T-55786GD084J-LW-AAN Optical Features

    Display Mode

    AWV, Normally Black, Transmissive

    Brightness

    600 cd/m² (Typ.)

    Contrast Ratio

    1000 : 1 (Typ.) (Transmissive)

    Display Color

    16.2M (6-bit + FRC)

    Response Time

    18/12 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    Symmetry

    White color Chromaticity

    Wx:0.318; Wy:0.338

    Sunlight Readable

    N

    T-55786GD084J-LW-AAN Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    T-55786GD084J-LW-AAN Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Amount

    4S4P

    Lamp Shape

    4 strings

    Lamp Life Time

    75K(Typ.) (Hours)

    Interface Type

    Included in panel signal interface

    Lamp Driver Board

    400mA (Typ.)

    T-55786GD084J-LW-AAN Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 8-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    270/330mA (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    JAE - FI-X30SSLA-HF, Pitch:1.0 mm, Pin:30 pins
