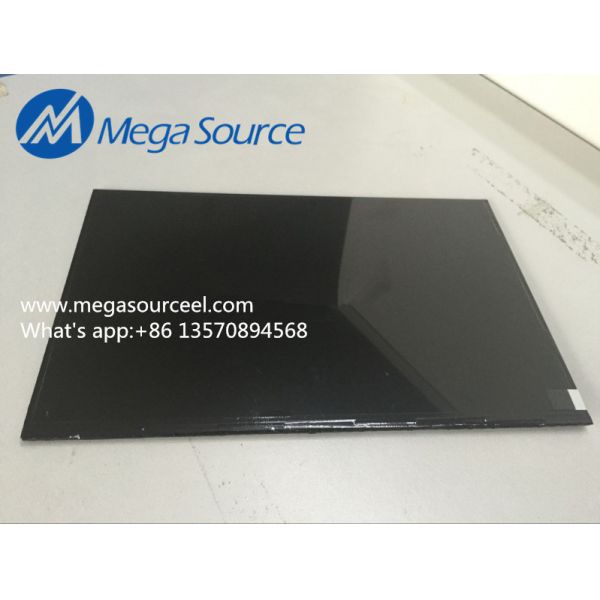

KOE 10.1inch TX26D24VC0AAA LCD Panel

    Buy cheap KOE 10.1inch TX26D24VC0AAA LCD Panel from wholesalers

    Buy cheap KOE 10.1inch TX26D24VC0AAA LCD Panel from wholesalers
    • Buy cheap KOE 10.1inch TX26D24VC0AAA LCD Panel from wholesalers

    KOE 10.1inch TX26D24VC0AAA LCD Panel

    Ask Lasest Price
    Brand Name : KOE
    Certification : RoHS Compliant
    Model Number : TX26D24VC0AAA
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    KOE 10.1inch TX26D24VC0AAA LCD Panel

    KOE 10.1inch TX26D24VC0AAA LCD Panel

    Specification for TX26D24VC0AAA:

    TX26D24VC0AAA Basic Information

    Panel Model

    TX26D24VC0AAA

    Panel Brand

    KOE

    Descrition

    a-Si TFT-LCD ,10.1 inch, 1280×800

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    TX26D24VC0AAA Mechanical Features

    Dot Resolution

    1280(RGB)×800 (WXGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    149 PPI

    Aspect Ratio

    16:10 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0565×0.1695 mm (H×V)

    Pixel Pitch

    0.1695×0.1695 mm (H×V)

    Weight

    146g (Typ.)

    Active Area

    216.96×135.6 mm (H×V)

    Outline Dimension

    229.46×149.1 mm (H×V)

    Outline Depth

    2.4/4.31 (Typ./Max.) mm

    Holes & Brackets

    Without

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    TX26D24VC0AAA Optical Features

    Display Mode

    IPS, Normally Black, Transmissive

    Brightness

    350 cd/m² (Typ.)

    Contrast Ratio

    800 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (8-bit)

    Response Time

    25 (Typ.)(Tr+Td)

    Viewing Angle

    85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    Symmetry

    White color Chromaticity

    Wx:0.310; Wy:0.330

    White Variation

    1.33/1.43 (Typ./Max.)(9 points)

    Sunlight Readable

    N

    TX26D24VC0AAA Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    TX26D24VC0AAA Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Interface Type

    Included in panel signal interface

    Lamp Driver Board

    3.0W (Typ.)

    TX26D24VC0AAA Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 8-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Panel Power Consumption

    0.9W (Typ.)

    Interface Type

    Connector

    Interface Position

    Signal Interface

    Vigorconn - F62240-H1210A, Pitch:0.5 mm, Pin:40 pins
