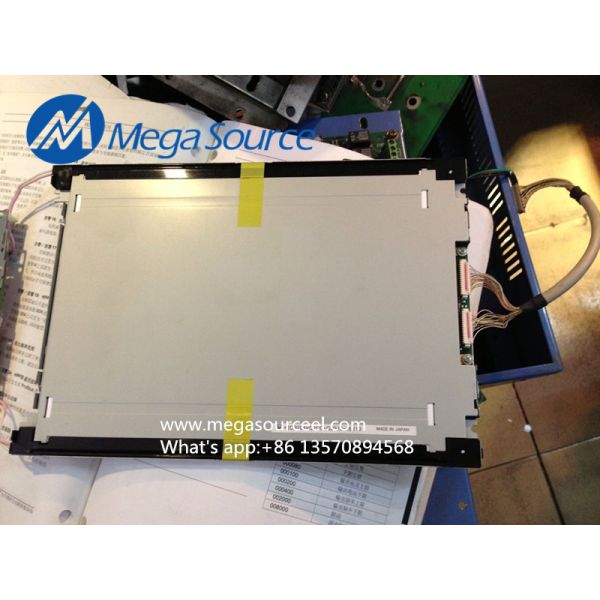

OPTREX 10.4inch T-55787GD104J-LW-AFN LCD Panel

    Buy cheap OPTREX 10.4inch T-55787GD104J-LW-AFN LCD Panel from wholesalers

    Buy cheap OPTREX 10.4inch T-55787GD104J-LW-AFN LCD Panel from wholesalers
    • Buy cheap OPTREX 10.4inch T-55787GD104J-LW-AFN LCD Panel from wholesalers

    OPTREX 10.4inch T-55787GD104J-LW-AFN LCD Panel

    Ask Lasest Price
    Brand Name : OPTREX
    Certification : RoHS Compliant
    Model Number : T-55787GD104J-LW-AFN
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    OPTREX 10.4inch T-55787GD104J-LW-AFN LCD Panel

    OPTREX 10.4inch T-55787GD104J-LW-AFN LCD Panel

    Specification for T-55787GD104J-LW-AFN:

    T-55787GD104J-LW-AFN Basic Information

    Panel Model

    T-55787GD104J-LW-AFN

    Panel Brand

    OPTREX

    Descrition

    a-Si TFT-LCD ,10.4 inch, 800×600

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -30 ~ 80 °C

    Storage Temperature

    -30 ~ 80 °C

    T-55787GD104J-LW-AFN Mechanical Features

    Dot Resolution

    800(RGB)×600 (SVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    96 PPI

    Aspect Ratio

    4:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.088×0.264 mm (H×V)

    Pixel Pitch

    0.264×0.264 mm (H×V)

    Weight

    TBD

    Surface

    Antiglare

    Active Area

    211.2×158.4 mm (H×V)

    Outline Dimension

    230×180.2 mm (H×V)

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    T-55787GD104J-LW-AFN Optical Features

    Display Mode

    AWV, Normally Black, Transmissive

    Brightness

    1200 cd/m² (Typ.)

    Contrast Ratio

    1000 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (8-bit)

    Response Time

    18/12 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    Symmetry

    Sunlight Readable

    Y

    T-55787GD104J-LW-AFN Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    T-55787GD104J-LW-AFN Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Amount

    8S4P

    Lamp Shape

    4 strings

    Lamp Life Time

    50K(Typ.) (Hours)

    Interface Type

    Included in panel signal interface

    Lamp Driver Board

    1.03/1.34A (Typ./Max.)

    T-55787GD104J-LW-AFN Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 8-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    250/300mA (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    JAE - FI-X30SSLA-HF, Pitch:1.0 mm, Pin:30 pins
