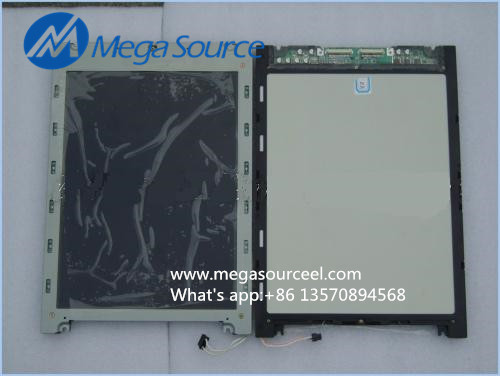

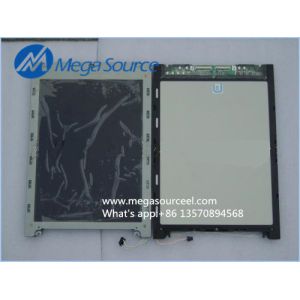

LiteMax 10.4inch LF1041 LCD Panel

    Buy cheap LiteMax 10.4inch LF1041 LCD Panel from wholesalers

    Buy cheap LiteMax 10.4inch LF1041 LCD Panel from wholesalers
    • Buy cheap LiteMax 10.4inch LF1041 LCD Panel from wholesalers

    LiteMax 10.4inch LF1041 LCD Panel

    Ask Lasest Price
    Brand Name : LiteMax
    Certification : RoHS Compliant
    Model Number : LF1041
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    LiteMax 10.4inch LF1041 LCD Panel

    LiteMax 10.4inch LF1041 LCD Panel

    Specification for LF1041:

    LF1041 Basic Information

    Panel Model

    LF1041

    Panel Brand

    LiteMax

    Descrition

    a-Si TFT-LCD ,10.4 inch, 800×600

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    LF1041 Mechanical Features

    Dot Resolution

    800(RGB)×600 (SVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    96 PPI

    Aspect Ratio

    4:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.088×0.264 mm (H×V)

    Pixel Pitch

    0.264×0.264 mm (H×V)

    Weight

    680±10g

    Active Area

    211.2×158.4 mm (H×V)

    Bezel Area

    215.6×162.7 mm (H×V)

    Outline Dimension

    243×184 mm (H×V)

    Outline Depth

    20.85/27.2 (Typ./Max.) mm

    Holes & Brackets

    Face mounting holes (4-Φ3.5, 4-M2) on left, right bezel

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    LF1041 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    1500 cd/m² (Typ.)

    Contrast Ratio

    500 : 1 (Typ.) (Transmissive)

    Display Color

    262K (6-bit)

    Response Time

    10/25 (Typ.)(Tr/Td)

    Viewing Angle

    60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    White color Chromaticity

    Wx:0.320; Wy:0.330

    White Variation

    1.30 (Max.)(5 points)

    Sunlight Readable

    Y

    LF1041 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    LF1041 Backlight System

    Lamp Position

    Direct light type

    Lamp Type

    CCFL

    Lamp Amount

    4 pcs

    Lamp Life Time

    50K(Typ.) (Hours)

    Lamp Voltage

    420V (Typ.)

    Lamp Current

    33/36/39mA (Min./Typ./Max.)

    Lamp Operating Frequency

    55±5KHz

    Lamp Startup Voltage

    1700V (Typ.)(Ta=+25℃)

    Lamps Power Consumption

    25.0W (Typ.)

    Interface Type

    Connector

    Lamp Driver Board

    No

    LF1041 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 6-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    255.4/252.1/253.5mA (Min./Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    HRS - DF19K-20P-1H, Pitch:1.0 mm, Pin:20 pins
