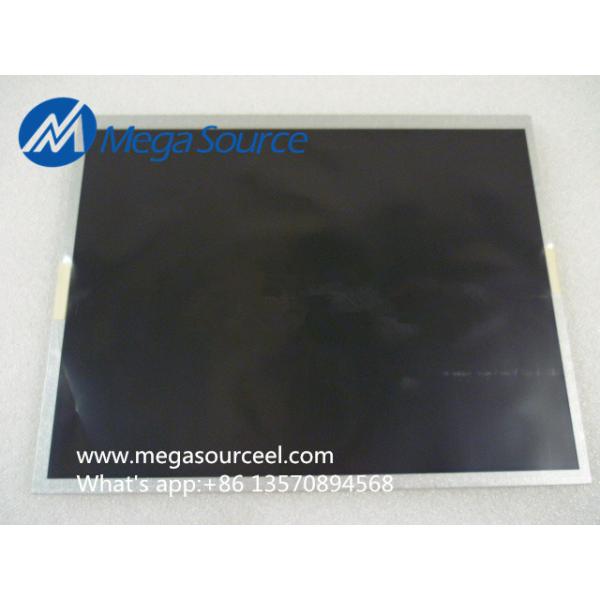

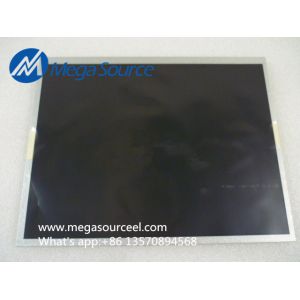

IBM 12.1inch ITSV51X LCD Panel

    Buy cheap IBM 12.1inch ITSV51X LCD Panel from wholesalers

    Buy cheap IBM 12.1inch ITSV51X LCD Panel from wholesalers
    • Buy cheap IBM 12.1inch ITSV51X LCD Panel from wholesalers

    IBM 12.1inch ITSV51X LCD Panel

    Ask Lasest Price
    Brand Name : IBM
    Certification : RoHS Compliant
    Model Number : ITSV51X
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    IBM 12.1inch ITSV51X LCD Panel

    IBM 12.1inch ITSV51X LCD Panel

    Specification for ITSV51X:

    ITSV51X Basic Information

    Panel Model

    ITSV51X

    Panel Brand

    IBM

    Descrition

    a-Si TFT-LCD ,12.1 inch, 800×600

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    ITSV51X Mechanical Features

    Dot Resolution

    800(RGB)×600 (SVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    82 PPI

    Aspect Ratio

    4:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.1025×0.3075 mm (H×V)

    Pixel Pitch

    0.3075×0.3075 mm (H×V)

    Weight

    450g (Typ.)

    Active Area

    246×184.5 mm (H×V)

    Outline Dimension

    272×195 mm (H×V)

    Outline Depth

    7.5 (Typ.) mm

    Holes & Brackets

    Face mounting holes (2-Φ2.4, 2-R1.2) on left, right bezel

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    ITSV51X Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    70 cd/m² (Typ.)

    Contrast Ratio

    100 : 1 (Typ.) (Transmissive)

    Display Color

    262K (6-bit)

    Response Time

    35/25 (Typ.)(Tr/Td)

    Sunlight Readable

    N

    ITSV51X Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    Total Power Consumption

    2.1W (Typ.)

    ITSV51X Backlight System

    Lamp Position

    Edge light type (Bottom side)

    Lamp Type

    CCFL

    Lamp Amount

    1 pcs

    Lamp Voltage

    500V (Typ.)

    Lamp Current

    2.0/6.0mA (Min./Max.)

    Lamp Operating Frequency

    30/40/60KHz (Min./Typ./Max.)

    Lamp Startup Voltage

    900/1300V (Max.)(Ta=+25/0℃)

    Lamps Power Consumption

    1.4W (Typ.)

    Interface Type

    Connector

    Lamp Driver Board

    No

    ITSV51X Signal Interface

    Signal Category

    TTL

    Signal Class

    Parallel RGB (1 ch, 6-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Panel Power Consumption

    0.7W (Typ.)

    Interface Type

    Connector

    Signal Interface

    JAE - IL-FHR-B40S-HF, Pitch:0.5 mm, Pin:40 pins
