HITACHI 3.2inch TX08D22VM0AAA LCD Panel

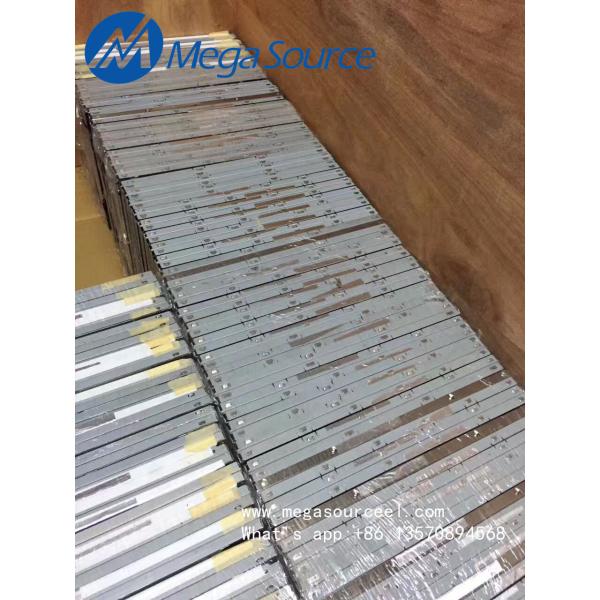

    Buy cheap HITACHI 3.2inch TX08D22VM0AAA LCD Panel from wholesalers

    Buy cheap HITACHI 3.2inch TX08D22VM0AAA LCD Panel from wholesalers
    • Buy cheap HITACHI 3.2inch TX08D22VM0AAA LCD Panel from wholesalers

    HITACHI 3.2inch TX08D22VM0AAA LCD Panel

    Ask Lasest Price
    Brand Name : HITACHI
    Certification : RoHS Compliant
    Model Number : TX08D22VM0AAA
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    HITACHI 3.2inch TX08D22VM0AAA LCD Panel

    HITACHI 3.2inch TX08D22VM0AAA LCD Panel

    Specification for TX08D22VM0AAA:

    TX08D22VM0AAA Basic Information

    Panel Model

    TX08D22VM0AAA

    Panel Brand

    HITACHI

    Descrition

    a-Si TFT-LCD ,3.2 inch, 240×432

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -20 ~ 70 °C

    Storage Temperature

    -30 ~ 80 °C

    Remarks

    Number of Colors: 16M/262K/65K

    TX08D22VM0AAA Mechanical Features

    Dot Resolution

    240(RGB)×432

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    153 PPI

    Aspect Ratio

    9:16 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.055×0.165 mm (H×V)

    Pixel Pitch

    0.165×0.165 mm (H×V)

    Weight

    19.2g (Typ.)

    Active Area

    39.6×71.28 mm (H×V)

    Outline Dimension

    45.2×83.7 mm (H×V)

    Outline Depth

    2.55 (Typ.) mm

    Landscape or Portrait

    Portrait type

    Touch Panel

    Without

    TX08D22VM0AAA Optical Features

    Display Mode

    IPS, Normally Black, Transmissive

    Brightness

    400 cd/m² (Typ.)

    Contrast Ratio

    500 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M ()

    Response Time

    35 (Typ.)(Tr+Td)

    Viewing Angle

    80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    Symmetry

    White color Chromaticity

    Wx:0.310; Wy:0.320

    White Variation

    1.25/1.43 (Typ./Max.)(9 points)

    Sunlight Readable

    N

    TX08D22VM0AAA Electronics Feature

    Vertical Frequency

    85Hz

    Driver IC

    Built-in S6D04D1

    TX08D22VM0AAA Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Amount

    5S1P

    Lamp Shape

    1 string

    Lamp Voltage

    16.0V (Typ.)

    Lamp Current

    20.0mA (Typ.)

    Interface Type

    Included in panel signal interface

    Lamp Driver Board

    No

    TX08D22VM0AAA Signal Interface

    Signal Category

    CPU

    Signal Class

    CPU

    Input Voltage for Panel

    1.8/2.85V (Typ.)(IOVCC/VCC)

    Input Current for Panel

    1.0/8.0mA (Typ.)(IOICC/ICC)

    Interface Type

    Connector

    Signal Interface

    HRS - FH26-39S-0.3SHW, Pitch:0.3 mm, Pin:39 pins
