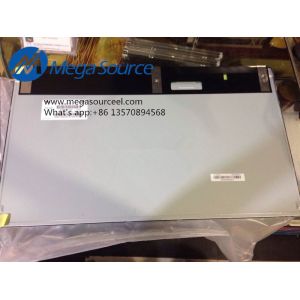

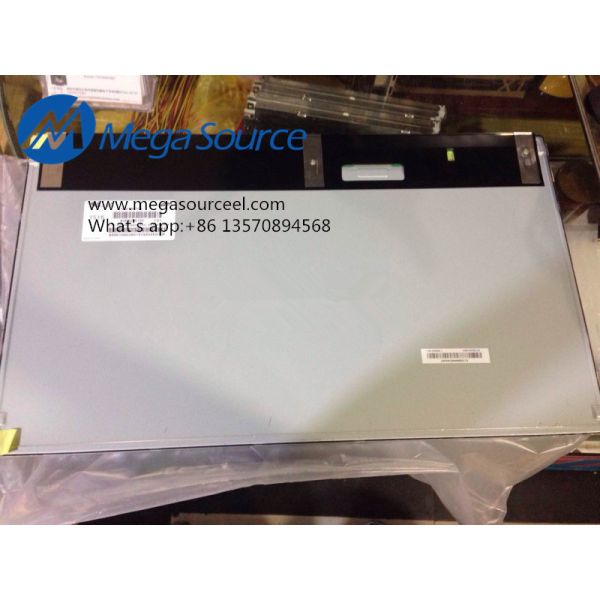

CMO 21.5inch M215H3-PA1 LCD Panel

    Buy cheap CMO 21.5inch M215H3-PA1 LCD Panel from wholesalers

    Buy cheap CMO 21.5inch M215H3-PA1 LCD Panel from wholesalers
    • Buy cheap CMO 21.5inch M215H3-PA1 LCD Panel from wholesalers

    CMO 21.5inch M215H3-PA1 LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : M215H3-PA1
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CMO 21.5inch M215H3-PA1 LCD Panel

    CMO 21.5inch M215H3-PA1 LCD Panel

    Specification for M215H3-PA1:

    M215H3-PA1 Basic Information

    Panel Model

    M215H3-PA1

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,21.5 inch, 1920×1080

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    Remarks

    open cell

    M215H3-PA1 Mechanical Features

    Dot Resolution

    1920(RGB)×1080 (FHD)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    102 PPI

    Aspect Ratio

    16:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.08275×0.24825 mm (H×V)

    Pixel Pitch

    0.24825×0.24825 mm (H×V)

    Weight

    590/610g (Typ./Max.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)

    Active Area

    476.64×268.11 mm (H×V)

    Outline Dimension

    483×280.41 mm (H×V)

    Outline Depth

    1.83 (Typ.) mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    M215H3-PA1 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    1000 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (8-bit)

    Response Time

    1.3/3.7 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/75/85 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    Transmissivity

    6.0% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    M215H3-PA1 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    Total Power Consumption

    5.3W

    M215H3-PA1 Backlight System

    Lamp Type

    No B/L

    M215H3-PA1 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (2 ch, 8-bit)

    Input Voltage for Panel

    5.0V (Typ.)

    Input Current for Panel

    1.05/1.26A (Typ./Max.)

    Panel Power Consumption

    5.3/6.3W (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    STARCONN - 093G30-B2001A, Pitch:1.0 mm, Pin:30 pins
