CMO 23.6inch M236H3-P02 LCD Panel

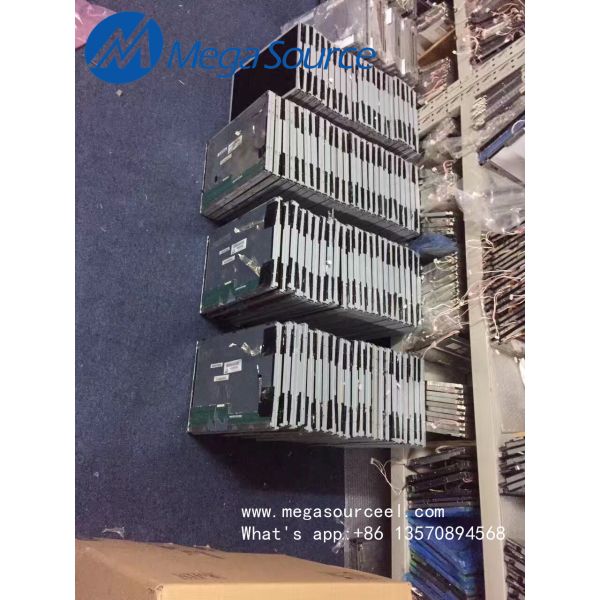

    Buy cheap CMO 23.6inch M236H3-P02 LCD Panel from wholesalers

    Buy cheap CMO 23.6inch M236H3-P02 LCD Panel from wholesalers
    • Buy cheap CMO 23.6inch M236H3-P02 LCD Panel from wholesalers

    CMO 23.6inch M236H3-P02 LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : M236H3-P02
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CMO 23.6inch M236H3-P02 LCD Panel

    CMO 23.6inch M236H3-P02 LCD Panel

    Specification for M236H3-P02:

    M236H3-P02 Basic Information

    Panel Model

    M236H3-P02

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,23.6 inch, 1920×1080

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    M236H3-P02 Mechanical Features

    Dot Resolution

    1920(RGB)×1080 (FHD)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    93 PPI

    Aspect Ratio

    16:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0905×0.2715 mm (H×V)

    Pixel Pitch

    0.2715×0.2715 mm (H×V)

    Weight

    710g (Max.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)

    Active Area

    521.28×293.22 mm (H×V)

    Outline Dimension

    534.56×307.34 mm (H×V)

    Outline Depth

    1.83 (Typ.) mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    M236H3-P02 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    1000 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (8-bit)

    Response Time

    1.5/3.5 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)

    White Variation

    1.33 (Max.)(9 points)

    Transmissivity

    6.1% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    M236H3-P02 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    Total Power Consumption

    5.5W (Max.)

    M236H3-P02 Backlight System

    Lamp Type

    No B/L

    M236H3-P02 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (2 ch, 8-bit)

    Input Voltage for Panel

    5.0V (Typ.)

    Input Current for Panel

    1.1/1.32A (Typ./Max.)

    Panel Power Consumption

    5.5/6.6W (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    STM - MSCKT2407P30HA, Pitch:1.0 mm, Pin:30 pins
