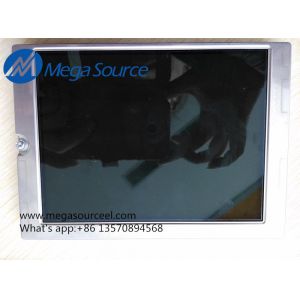

    IVO 6.2inch C062SWP1 LCD Panel

    Ask Lasest Price
    Brand Name : IVO
    Certification : RoHS Compliant
    Model Number : C062SWP1
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    IVO 6.2inch C062SWP1 LCD Panel

    IVO 6.2inch C062SWP1 LCD Panel

    Specification for C062SWP1:

    C062SWP1 Basic Information

    Panel Model

    C062SWP1

    Panel Brand

    IVO

    Descrition

    a-Si TFT-LCD ,6.2 inch, 800×480

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -20 ~ 70 °C

    Storage Temperature

    -30 ~ 80 °C

    Remarks

    8 Chips

    C062SWP1 Mechanical Features

    Dot Resolution

    800(RGB)×480 (WVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    150 PPI

    Aspect Ratio

    16:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0573×0.1609 mm (H×V)

    Pixel Pitch

    0.1719×0.1609 mm (H×V)

    Surface

    Without Polarizer

    Active Area

    137.52×77.232 mm (H×V)

    Outline Dimension

    147×86.232 mm (H×V)

    Outline Depth

    1.0±0.1 mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    C062SWP1 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    600 : 1 (Typ.) (Transmissive)

    Color Gamut

    50% NTSC (CIE1931)

    Response Time

    8 (Typ.)(Tr+Td)

    Viewing Angle

    75/75/70/70 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    White color Chromaticity

    Wx:0.310; Wy:0.330

    Transmissivity

    4.5% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    C062SWP1 Electronics Feature

    Vertical Frequency

    60Hz

    Driver IC

    Suggest ILI6123H + ILI5480

    C062SWP1 Backlight System

    Lamp Type

    No B/L

    Lamp Driver Board

    No
