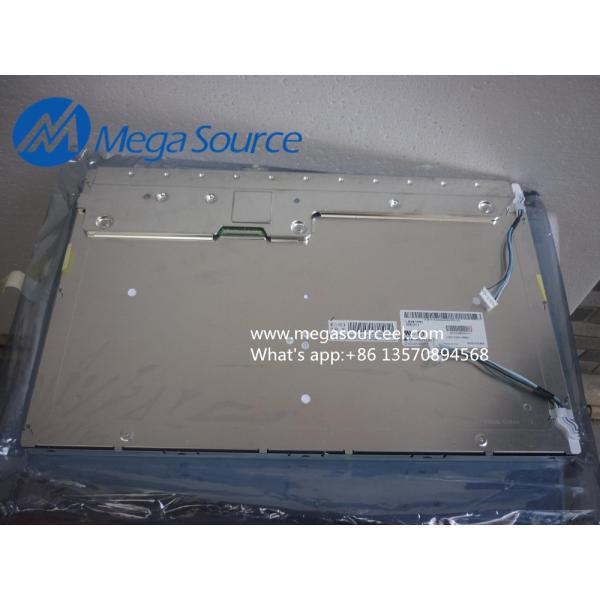

AUO 24inch M240UP01 V0 CELL LCD Panel

    Buy cheap AUO 24inch M240UP01 V0 CELL LCD Panel from wholesalers

    Buy cheap AUO 24inch M240UP01 V0 CELL LCD Panel from wholesalers
    • Buy cheap AUO 24inch M240UP01 V0 CELL LCD Panel from wholesalers

    AUO 24inch M240UP01 V0 CELL LCD Panel

    Ask Lasest Price
    Brand Name : AUO
    Certification : RoHS Compliant
    Model Number : M240UP01 V0 CELL
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    AUO 24inch M240UP01 V0 CELL LCD Panel

    AUO 24inch M240UP01 V0 CELL LCD Panel

    Specification for M240UP01 V0 CELL:

    M240UP01 V0 CELL Basic Information

    Panel Model

    M240UP01 V0 CELL

    Panel Brand

    AUO

    Descrition

    a-Si TFT-LCD ,24.0 inch, 1920×1200

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    M240UP01 V0 CELL Mechanical Features

    Dot Resolution

    1920(RGB)×1200 (WUXGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    94 PPI

    Aspect Ratio

    16:10 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.090×0.270 mm (H×V)

    Pixel Pitch

    0.270×0.270 mm (H×V)

    Surface

    Antiglare, Hard coating (3H)

    Active Area

    518.4×324 mm (H×V)

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    M240UP01 V0 CELL Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Display Color

    16.7M (6-bit + Hi-FRC)

    Response Time

    3.8/1.2 (Typ.)(Tr/Td); 2 (Typ.)(G to G)

    Viewing Angle

    80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)

    Sunlight Readable

    N

    M240UP01 V0 CELL Backlight System

    Lamp Type

    No B/L
