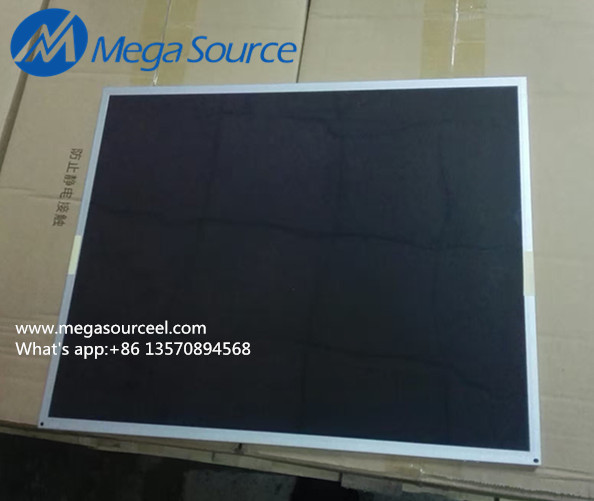

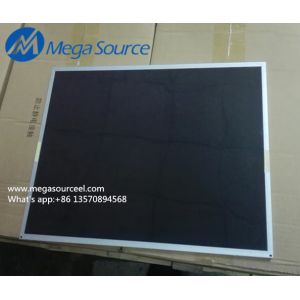

CMO 19inch M190Z1-P01 LCD Panel

    Buy cheap CMO 19inch M190Z1-P01 LCD Panel from wholesalers

    Buy cheap CMO 19inch M190Z1-P01 LCD Panel from wholesalers
    • Buy cheap CMO 19inch M190Z1-P01 LCD Panel from wholesalers

    CMO 19inch M190Z1-P01 LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : M190Z1-P01
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CMO 19inch M190Z1-P01 LCD Panel

    CMO 19inch M190Z1-P01 LCD Panel

    Specification for M190Z1-P01:

    M190Z1-P01 Basic Information

    Panel Model

    M190Z1-P01

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,19.0 inch, 1680×1050

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    Remarks

    High color saturation

    M190Z1-P01 Mechanical Features

    Dot Resolution

    1680(RGB)×1050 (WSXGA+)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    104 PPI

    Aspect Ratio

    16:10 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.081×0.243 mm (H×V)

    Pixel Pitch

    0.243×0.243 mm (H×V)

    Weight

    475/485g (Typ./Max.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)

    Active Area

    408.24×255.15 mm (H×V)

    Outline Dimension

    419.84×266.05 mm (H×V)

    Outline Depth

    1.82 (Typ.) mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    M190Z1-P01 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    1000 : 1 (Typ.) (Transmissive)

    Display Color

    16.7M (8-bit)

    Response Time

    1.5/3.5 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)

    White Variation

    1.25/1.40 (Typ./Max.)(13 points)

    Sunlight Readable

    N

    M190Z1-P01 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    M190Z1-P01 Backlight System

    Lamp Type

    No B/L

    M190Z1-P01 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (2 ch, 8-bit)

    Input Voltage for Panel

    5.0V (Typ.)

    Input Current for Panel

    1078mA (Max.)

    Interface Type

    Connector

    Signal Interface

    JAE - FI-X30SSL-HF, Pitch:1.0 mm, Pin:30 pins
