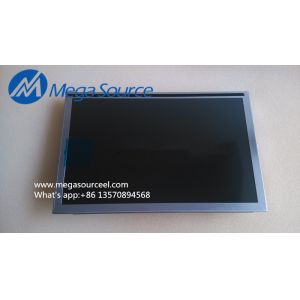

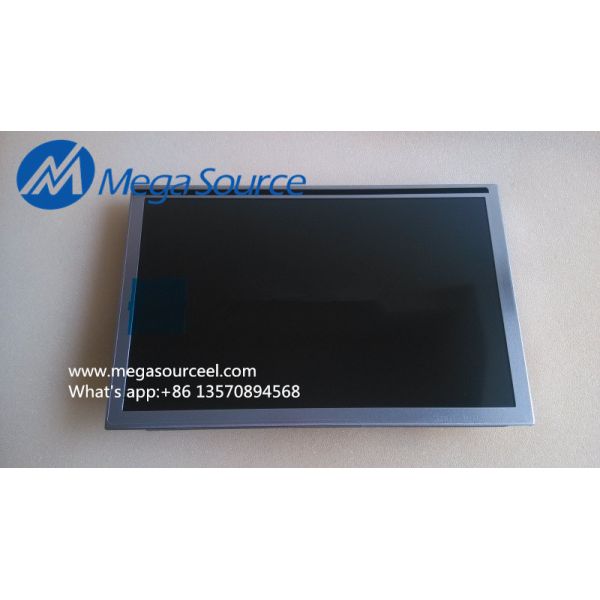

CMO 7inch C07011-01D LCD Panel

    Buy cheap CMO 7inch C07011-01D LCD Panel from wholesalers

    Buy cheap CMO 7inch C07011-01D LCD Panel from wholesalers
    • Buy cheap CMO 7inch C07011-01D LCD Panel from wholesalers

    CMO 7inch C07011-01D LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : C07011-01D
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CMO 7inch C07011-01D LCD Panel

    CMO 7inch C07011-01D LCD Panel

    Specification for C07011-01D:

    C07011-01D Basic Information

    Panel Model

    C07011-01D

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,7.0 inch, 800×480

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -30 ~ 80 °C

    Storage Temperature

    -40 ~ 90 °C

    C07011-01D Mechanical Features

    Dot Resolution

    800(RGB)×480 (WVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    133 PPI

    Aspect Ratio

    15:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.0635×0.1905 mm (H×V)

    Pixel Pitch

    0.1905×0.1905 mm (H×V)

    Weight

    36.7±3.7g

    Surface

    Without Polarizer

    Active Area

    152.4×91.44 mm (H×V)

    Outline Dimension

    160×99.94 mm (H×V)

    Outline Depth

    1.0 (Typ.) mm

    Landscape or Portrait

    Landscape type

    C07011-01D Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    0 cd/m²

    Contrast Ratio

    250 : 1 (Typ.) (Transmissive)

    Viewing Angle

    45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    White color Chromaticity

    Wx:0.307; Wy:0.349

    Transmissivity

    5.5% (Typ.)(with Polarizer)

    Sunlight Readable

    N

    C07011-01D Electronics Feature

    Driver IC

    COG Suggest HX8232-A02 x 3 + HX8643A x 1

    C07011-01D Backlight System

    Lamp Type

    No B/L
