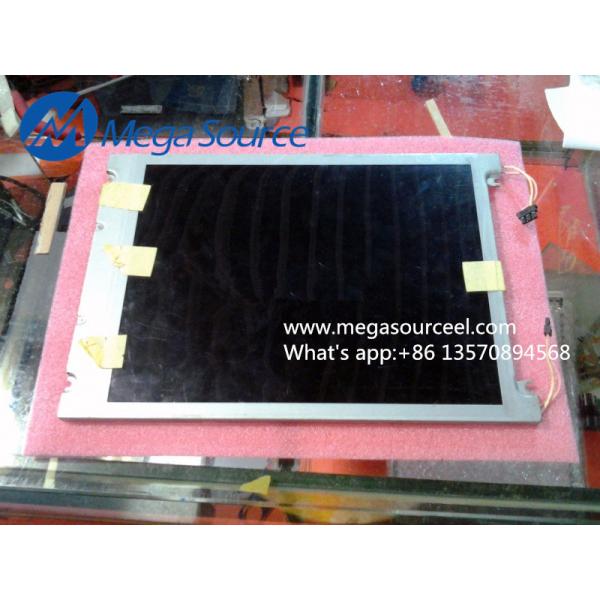

CMO 10.4inch A104AT01 LCD Panel

    Buy cheap CMO 10.4inch A104AT01 LCD Panel from wholesalers

    Buy cheap CMO 10.4inch A104AT01 LCD Panel from wholesalers
    • Buy cheap CMO 10.4inch A104AT01 LCD Panel from wholesalers

    CMO 10.4inch A104AT01 LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Certification : RoHS Compliant
    Model Number : A104AT01
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union ,Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    CMO 10.4inch A104AT01 LCD Panel

    CMO 10.4inch A104AT01 LCD Panel

    Specification for A104AT01:

    A104AT01 Basic Information

    Panel Model

    A104AT01

    Panel Brand

    CMO

    Descrition

    a-Si TFT-LCD ,10.4 inch, 800×600

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -20 ~ 70 °C

    Storage Temperature

    -30 ~ 80 °C

    A104AT01 Mechanical Features

    Dot Resolution

    800(RGB)×600 (SVGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    96 PPI

    Aspect Ratio

    4:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.088×0.264 mm (H×V)

    Pixel Pitch

    0.264×0.264 mm (H×V)

    Weight

    390g (Typ.)

    Surface

    Hard coating (3H)

    Active Area

    211.2×158.4 mm (H×V)

    Bezel Area

    214.2×162.5 mm (H×V)

    Outline Dimension

    228.4×175.4 mm (H×V)

    Outline Depth

    5.9±0.3 mm

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    A104AT01 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    250 cd/m² (Typ.)

    Contrast Ratio

    500 : 1 (Typ.) (Transmissive)

    Display Color

    262K/16.7M (6-bit / 6-bit + Dithering)

    Color Gamut

    50% NTSC (CIE1931)

    Response Time

    5/15 (Typ.)(Tr/Td)

    Viewing Angle

    70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    White color Chromaticity

    Wx:0.310; Wy:0.330

    Sunlight Readable

    N

    A104AT01 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    Time Controller (T-CON)

    Embedded T-CON

    A104AT01 Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Amount

    3S12P

    Lamp Shape

    Array

    Lamp Life Time

    10K(Min.) (Hours)

    Lamp Voltage

    9.6/10.5V (Typ./Max.)

    Lamp Current

    240mA (Typ.)

    Lamps Power Consumption

    2.3/2.52W (Typ./Max.)

    Interface Type

    Connector

    Lamp Driver Board

    No

    A104AT01 Signal Interface

    Signal Category

    TTL

    Signal Class

    Parallel RGB (1 ch, 6/8-bit)

    Input Voltage for Panel

    3.3/12.0V (Typ.)(VCC/AVDD)

    Input Current for Panel

    30/40mA (Typ.)(ICC/AIDD)

    Interface Type

    FPC
