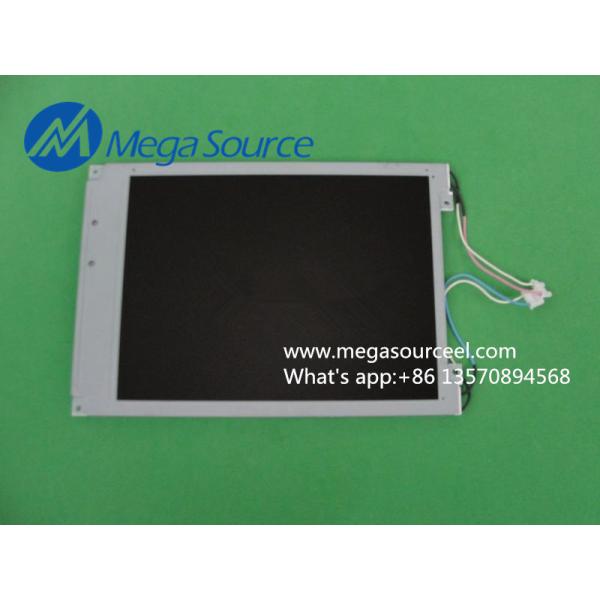

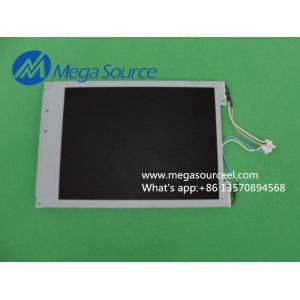

Mitsubishi 8.4inch AA084VC08 LCD Panel

    Buy cheap Mitsubishi 8.4inch AA084VC08 LCD Panel from wholesalers

    Buy cheap Mitsubishi 8.4inch AA084VC08 LCD Panel from wholesalers
    • Buy cheap Mitsubishi 8.4inch AA084VC08 LCD Panel from wholesalers

    Mitsubishi 8.4inch AA084VC08 LCD Panel

    Ask Lasest Price
    Brand Name : Mitsubishi
    Certification : RoHS Compliant
    Model Number : AA084VC08
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    Mitsubishi 8.4inch AA084VC08 LCD Panel

    Mitsubishi 8.4inch AA084VC08 LCD Panel

    Specification for AA084VC08:

    AA084VC08 Basic Information

    Panel Model

    AA084VC08

    Panel Brand

    Mitsubishi

    Descrition

    a-Si TFT-LCD ,8.4 inch, 640×480

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    -20 ~ 70 °C

    Storage Temperature

    -20 ~ 80 °C

    AA084VC08 Mechanical Features

    Dot Resolution

    640(RGB)×480 (VGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    95 PPI

    Aspect Ratio

    4:3 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.089×0.267 mm (H×V)

    Pixel Pitch

    0.267×0.267 mm (H×V)

    Surface

    Antiglare, Hard coating (3H)

    Active Area

    170.88×128.16 mm (H×V)

    Bezel Area

    174.9×132.2 mm (H×V)

    Outline Dimension

    199.5×149 mm (H×V)

    Outline Depth

    11.5±0.5 mm

    Holes & Brackets

    Face mounting holes (4-Φ3.4) on left, right bezel

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    AA084VC08 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Contrast Ratio

    500 : 1 (Typ.) (Transmissive)

    Display Color

    262K (6-bit)

    Response Time

    6/19 (Typ.)(Tr/Td)

    Viewing Angle

    65/65/50/60 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    White color Chromaticity

    Wx:0.313; Wy:0.324

    White Variation

    1.30 (Max.)(5 points)

    Sunlight Readable

    N

    AA084VC08 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    Yes (180°)

    AA084VC08 Backlight System

    Lamp Position

    Edge light type (Top and Bottom)

    Lamp Type

    CCFL

    Lamp Amount

    2 pcs

    Lamp Shape

    Straight

    Lamp Life Time

    50K(Min.) (Hours)

    Lamp Replaceable

    Replaceable

    Lamp Voltage

    450V (Typ.)

    Lamp Current

    3.0/6.5/7.0mA (Min./Typ./Max.)

    Lamp Operating Frequency

    30/60KHz (Typ.)

    Lamp Startup Voltage

    1000/1200/1350V (Min.)(Ta=+25/0/-20℃)

    Interface Type

    Connector

    Interface Position

    Lamp Driver Board

    No

    AA084VC08 Signal Interface

    Signal Category

    TTL

    Signal Class

    CMOS (1 ch, 6-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    240/400mA (Typ./Max.)

    Voltage for Display Signals

    0≤VIL≤0.8V; 2.4V≤VIH≤5.5V

    Interface Type

    Connector

    Interface Position

    Signal Interface

    HRS - DF9B-31P-1V(32), Pitch:1.0 mm, Pin:31 pins
