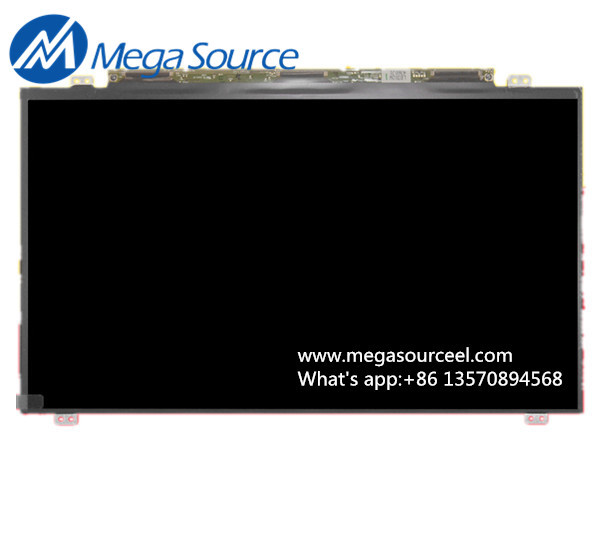

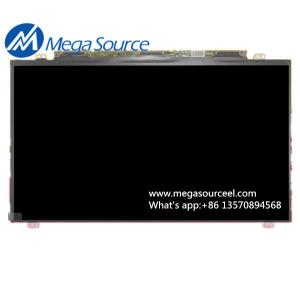

SAMSUNG 15.6inch LTN156AT24-801 LCD Panel

    Buy cheap SAMSUNG 15.6inch LTN156AT24-801 LCD Panel from wholesalers

    Buy cheap SAMSUNG 15.6inch LTN156AT24-801 LCD Panel from wholesalers
    • Buy cheap SAMSUNG 15.6inch LTN156AT24-801 LCD Panel from wholesalers

    SAMSUNG 15.6inch LTN156AT24-801 LCD Panel

    Ask Lasest Price
    Brand Name : SAMSUNG
    Certification : RoHS Compliant
    Model Number : LTN156AT24-801
    Price : Pls Contact sales team
    Delivery Time : stock
    Payment Terms : T/T , Paypal, Western Union Escrow etc.
    Supply Ability : 1000
    • Product Details
    • Company Profile

    SAMSUNG 15.6inch LTN156AT24-801 LCD Panel

    SAMSUNG 15.6inch LTN156AT24-801 LCD Panel

    Specification for LTN156AT24-801:

    LTN156AT24-801 Basic Information

    Panel Model

    LTN156AT24-801

    Panel Brand

    SAMSUNG

    Descrition

    a-Si TFT-LCD ,15.6 inch, 1366×768

    Panel Type

    a-Si TFT-LCD

    Operating Temperature

    0 ~ 50 °C

    Storage Temperature

    -20 ~ 60 °C

    LTN156AT24-801 Mechanical Features

    Dot Resolution

    1366(RGB)×768 (WXGA)

    Pixel Configuration

    RGB Vertical Stripe

    Pixel Density

    100 PPI

    Aspect Ratio

    16:9 (H:V)

    Form Factor

    Flat Rectangle Display

    Dot Pitch

    0.084×0.252 mm (H×V)

    Pixel Pitch

    0.252×0.252 mm (H×V)

    Weight

    450g (Max.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)

    Active Area

    344.232×193.536 mm (H×V)

    Bezel Area

    348.8×197.0 mm (H×V)

    Outline Dimension

    359.3×209.5 mm (H×V)

    Outline Depth

    5.5 (Max.) mm

    Shape Style

    Wedge (PCBA Bent, Depth ≥5.2mm)

    Holes & Brackets

    Side mounting holes (8-M2) on left, right bezel

    Landscape or Portrait

    Landscape type

    Touch Panel

    Without

    LTN156AT24-801 Optical Features

    Display Mode

    TN, Normally White, Transmissive

    Brightness

    220 cd/m² (Typ.)

    Contrast Ratio

    300 : 1 (Min.) (Transmissive)

    Display Color

    262K (6-bit)

    Color Gamut

    60% NTSC (CIE1931)

    Response Time

    16 (Typ.)(Tr+Td)

    Viewing Angle

    45/45/15/30 (Typ.)(CR≥10) (L/R/U/D)

    Viewing Direction

    6 o'clock

    White color Chromaticity

    Wx:0.313; Wy:0.329

    White Variation

    1.70 (Max.)(13 points)

    Sunlight Readable

    N

    LTN156AT24-801 Electronics Feature

    Vertical Frequency

    60Hz

    Reverse Scan

    No

    LTN156AT24-801 Backlight System

    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Amount

    4S1P

    Lamp Shape

    1 string

    Lamp Life Time

    10K(Min.) (Hours)

    Lamp Voltage

    26.4V (Typ.)

    Lamp Current

    115mA (Typ.)

    Interface Type

    Included in panel signal interface

    Lamp Driver Board

    3.2/3.6W (Typ./Max.)

    LTN156AT24-801 Signal Interface

    Signal Category

    LVDS

    Signal Class

    LVDS (1 ch, 6-bit)

    Input Voltage for Panel

    3.3V (Typ.)

    Input Current for Panel

    240/264mA (Typ./Max.)

    Interface Type

    Connector

    Signal Interface

    I-PEX - 20455-040E-02R, Pitch:0.5 mm, Pin:40 pins
