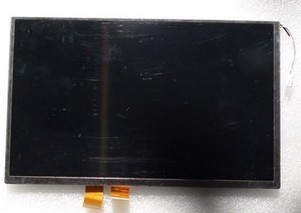

LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.)

    Buy cheap LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.) from wholesalers

    Buy cheap LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.) from wholesalers
    • Buy cheap LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.) from wholesalers
    • Buy cheap LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.) from wholesalers
    • Buy cheap LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.) from wholesalers

    LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.)

    Ask Lasest Price
    Brand Name : AUO
    Certification : ROHS COMPLIANT
    Model Number : G121XN01 V0
    Price : Contact for Sample
    Delivery Time : Within 3days
    Payment Terms : T/T in advance, Paypal, Western Union
    Supply Ability : 1432
    • Product Details
    • Company Profile

    LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.)

    LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.)


    Basic Information

    Panel Brand :LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.)
    Panel Model :G121XN01 V0
    Model Alias :G121XN01 V.0
    Panel Type :a-Si TFT-LCD , Panel
    Application :
    • LCD Panel Types G121XN01 V0 4:3 12.1 inch with 500 cd/m² (Typ.)
    Operating Temperature :-30 ~ 85 °C
    Storage Temperature :-30 ~ 85 °C

    Mechanical Features

    Panel Size :12.1 inch
    Dot Resolution :1024(2)×768(2) (XGA)
    Pixel Configuration :RGBW Rectangle
    Pixel Density :105 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.120×0.120 mm (H×V)
    Pixel Pitch :0.240×0.240 mm (H×V)
    Weight :495g (Max.)
    Surface :Antiglare, Hard coating (3H)
    Active Area :245.76×184.32 mm (H×V)
    Bezel Area :250.8×189.4 mm (H×V)
    Outline Dimension :279×209 mm (H×V)
    Outline Depth :6.0/9.0 (Typ./Max.) mm
    Holes & Brackets :Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Optical Features

    Display Mode :TN, Normally White, Transmissive
    Brightness :500 cd/m² (Typ.)
    Contrast Ratio :700 : 1 (Typ.) (Transmissive)
    Display Color :262K/16.2M (6-bit / 6-bit + FRC)
    Color Gamut :70% NTSC (CIE1931)
    Response Time :25/10 (Typ.)(Tr/Td)
    Viewing Angle :80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.33 (Max.)(5 points)

    Pls check the below LCD panel.If you need any other LCD display.pls contact with us:

    UG-2832HSWEG06WiseChip0.91"128×32
    STG-152828GHFA101WiseChip1.5"128×128
    RGS10128064WR017RiTdisplay0.96"128×64
    RGS24128064YW002RiTdisplay2.4"128×64
    RGS24128064YW005RiTdisplay2.4"128×64
    RGS24128064YW001RiTdisplay2.4"128×64
    NVK-160SC004F-S-0000Neoview Kolon2.0"128×160
    VGM128064B1W03Visionox1.54"128×64
    RGC11096096YR000RiTdisplay1.1"96×96
    RGS18160128FH014RiTdisplay1.8"160×128
    VGY12864ZVisionox2.7"128×64
    VGG12864ZVisionox2.7"128×64
    MXS8477Pioneer0.79"96×26
    MXS4047Pioneer1.6"128×100
    MXS8486Pioneer1.3"128×96
    MXS8478Pioneer0.6"80×16
    MXS8476Pioneer0.5"60×32
    UG-2832GLBAT02WiseChip1.1"128×32
    UG-2836TLBAG01WiseChip1.1"128×36
    UG-9664GFDCF03WiseChip0.95"96×64
    NVK-160SC002F-S-0100Neoview Kolon2.0"128×160
    NVK-128SC008F-SNeoview Kolon1.5"128×128
    NVK-096SC004T-SNeoview Kolon1.1"96×96
    NVK-080SC002T-S-0200Neoview Kolon1.2"128×80
    NVK-064SC012F-S-0100Neoview Kolon0.95"96×64
    NVK-064SC003F-SNeoview Kolon1.0"96×64
    LPST128064A00-ABLite Array1.0"128×64
    LPST096096A00-T3Lite Array1.1"96×96
    LPSF096064A01-T3Lite Array0.95"96×64
    LPSF096064A00-T3Lite Array1.0"96×64
    LPST096096A00-T4Lite Array1.1"96×96
    LPST128128A00-T4Lite Array1.5"128×128
    ELW1401BAFutaba1.4"176×64
    ELF3701AAFutaba3.7"256×96
